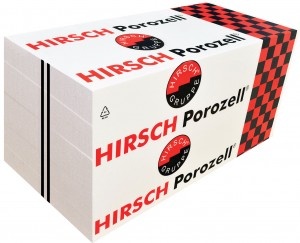

EXPANDED POLYSTYRENE HIRSCH EPS200 20MM / 12.5MP

Thickness: 20 mm

Board length: 1000 mm

Plate width: 500 mm

No. boards/box: 25 boards

Technical characteristics:
- Bending strength according to EN 12089 : BS 250 | ≥ 250 kPa
- compressive strength at 10% deformation according to EN 826: CS(10)200 | ≥ 200 kPa
- thermal conductivity (design value) : ≤ 0,033 W/mk
- combustibility class: EPS from flame-retarded raw material.
- water vapour diffusion resistance factor: 40-100

Areas of use:
used for thermal insulation:
- floors, in residential and industrial buildings;
- roofs and terraces with green and walkable areas;

Marking:
EPS - EN 13163 - T(1)- L(2) - W(1)- Sb(1)- P(3)- BS250- CS(10)200- DS(N)2-DLT(1)5-TR250- WL(T)3- WD(V)1;

Recognition mark:
Two black stripes on the edge of the panel;
