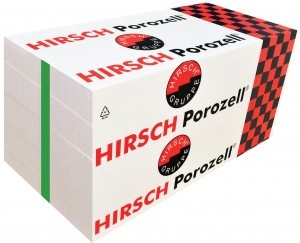

EXPANDED POLYSTYRENE HIRSCH EPS50 80MM / 3MP

Thickness: 80 mm

Board length: 1000 mm

Plate width: 500 mm

No. boards/box: 6 boards

Technical characteristics:
- bending resistance according to EN 12089 : BS 75 | ≥ 75 kPa
- compressive strength at 10% deformation according to EN 826: CS(10)50 | ≥ 50 kPa
- thermal conductivity (design value) : ≤ 0,042 W/mk
- combustibility class: EPS from flame-retarded raw material.
- water vapour diffusion resistance factor: 20-40

Areas of use:
Used for thermal insulation of building interiors;

Marking:
EPS - EN 13163 - T(1)- L(2) - W(1)- Sb(1)- P(3)- BS75- CS(10)50- DS(N) 2-DLT(1)5-TR60- WL(T)4- WD(V)1;

Recognition mark:
A green stripe on the edge of the panel;
