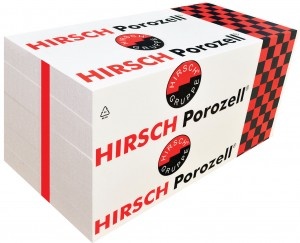

EXPANDED POLYSTYRENE HIRSCH EPS80 100MM / 2.5MP

Thickness: 100 mm

Plate length: 1000 mm

Plate width: 500 mm

No. boards/box: 5 boards

Technical characteristics:
- Bending resistance according to EN 12089 : BS 125 | ≥ 125 kPa
- compressive stress at 10% deformation according to EN 826: CS(10)80 | ≥ 80 kPa
- thermal conductivity (design value) : ≤ 0,037 W/mk
- combustibility class: EPS from flame-retarded raw material. Euroclass E for reaction to fire (according to SR EN 13501-1+A1/2010)
- water vapour diffusion resistance factor: 20-40

Areas of use:
Used for thermal insulation of building facades;

Labelling:
PS - EN 13163 - T(1)- L(2) - W(1)- Sb(1)- P(3)- BS125- CS(10)80- DS(N)2-DLT(1)5-TR150- WL(T)3- WD(V)1;

Recognising sign:
A red stripe on the edge of the panel;
