Hirsch Expanded Polystyrene Eps70 20Mm / 12.5Mp

Thickness: 20 mm

Board length: 1000 mm

Board width: 500 mm

No. boards/box: 25 boards

Technical characteristics:
- bending resistance according to EN 12089 : BS 115 | ≥ 115 kPa
- compressive stress at 10% deformation according to EN 826: CS(10)70 | ≥ 70 kPa
- thermal conductivity (design value) : ≤ 0,039 W/mk
- combustibility class: EPS from flame-retarded raw material. Euroclass E for reaction to fire (according to SR EN 13501-1+A1/2010)
- water vapour diffusion resistance factor: 20-40

Areas of use:
Used for thermal insulation of building facades;

Labelling:
EPS - EN 13163 - T(1)- L(2) - W(1)- Sb(1)- P(3)-BS115- CS(10)70- DS(N)2-DLT(1)5-TR100- WL(T)3,5- WD(V)1;

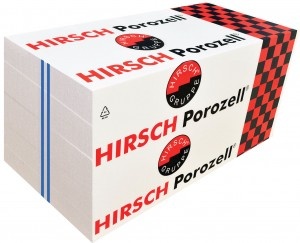

Recognition mark:
2 blue stripes, on the edge of the panel;
